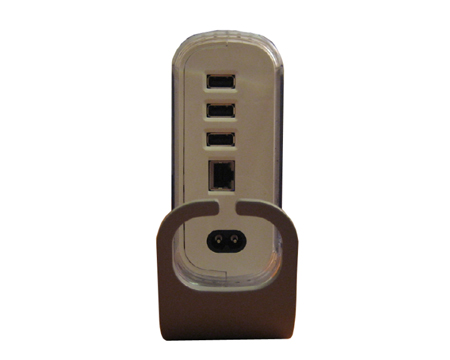

Site USB Device Server

Access multiple data loggers over Ethernet. Model No. DSS-1

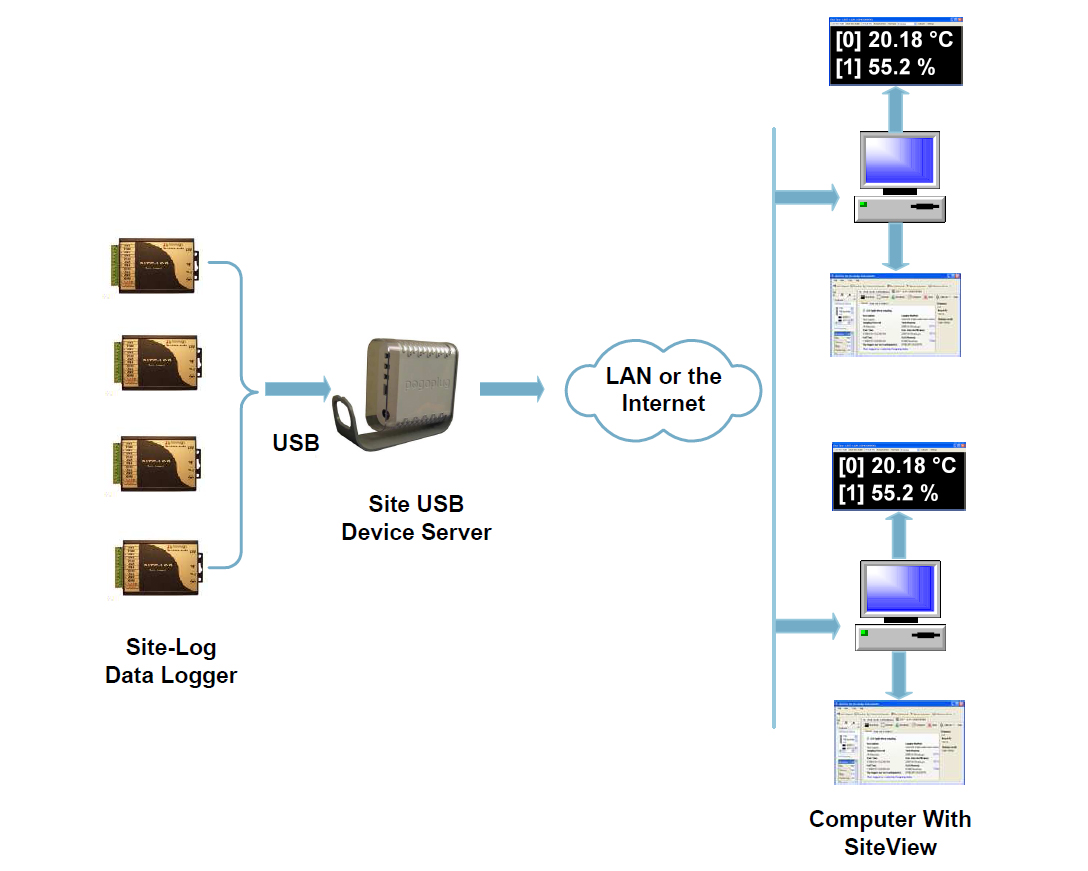

Site USB Device Server is an USB-over-Ethernet device server which let you work remotely with SITE-LOG data loggers over LAN or Internet as if they were connected directly to the local PC.

Features:
  • Remote Access:
    Communicate with data logger from any place where Ethernet/Internet is available.
  • Multiple Access:
    Up to 20 clients can access same data logger simultaneously.
  • Multiple Data Loggers:
    Up to 25 data loggers can be connected to one Site USB Device Server.
  • Password Protection for Security:
    Only authorized user can access and configure the data loggers.
  • Dynamic IP Addressing:
    You do not need to assign IP address manually. After the device server is connected to the network, it takes the IP address assigned by DHCP server on your network
  • Supplies power to data logger:
    No worries about the low battery or loss of data. The USB ports supply +5VDC to the data loggers.
Site USB Device Server Specifications
Interface between data loggers and Ethernet
General Information
Product Name:
Site USB Device Server
Model:
DSS-1
Software:
SiteView as client side software.
IP Addressing:
Dynamic
Power Requirement:
110 - 240VAC, 50 - 60HZ 400mA
Approvals:
CE, FCC, UL
Connectors
Ethernet
1 - RJ45 Female (Ethernet cable included)
USB:
4 - USB Ports for direct connection to Site-Log data loggers
Capability
Max. Loggers
Up to 25 Site-Log data loggers can be connected to the Server.
USB hubs required if loggers more than four.
Self-powered USB hubs required if loggers more than 10.
Max. Clients
Up to 20 clients can access one Site-Log data logger at the same time.
Max. Baud Rate
115200 bps
Physical
Dimensions
115 X 125 X 50 MM (4.5 X 4.9 X 2.0 IN)
Weight
450g
g


Model Description Buy
DSS-1 Site USB Device Server
